| Вид оплаты: | L/C,T/T,D/P |
| Инкотермс: | CFR,FOB,CIF,EXW |
| транспорт: | Ocean |
| Порт: | Shanghai Port,Qingdao Port,Ningbo Port |
Оттенок:
Бренд: СИНХО
Origin: Китай
положение дел: Новый
Где предоставлять местные услуги (в каких странах есть зарубежные центры обслуживания): никто
Расположение выставочного зала (в каких странах есть образцы за рубежом): никто
Тип маркетинга: Обычный продукт
место происхождения: Китай
Промышленность приложений: Руда
Применимая отрасль: Строительные работы, Энергетика и горнодобывающая промышленность
Material: 92/95 alumina ceramics

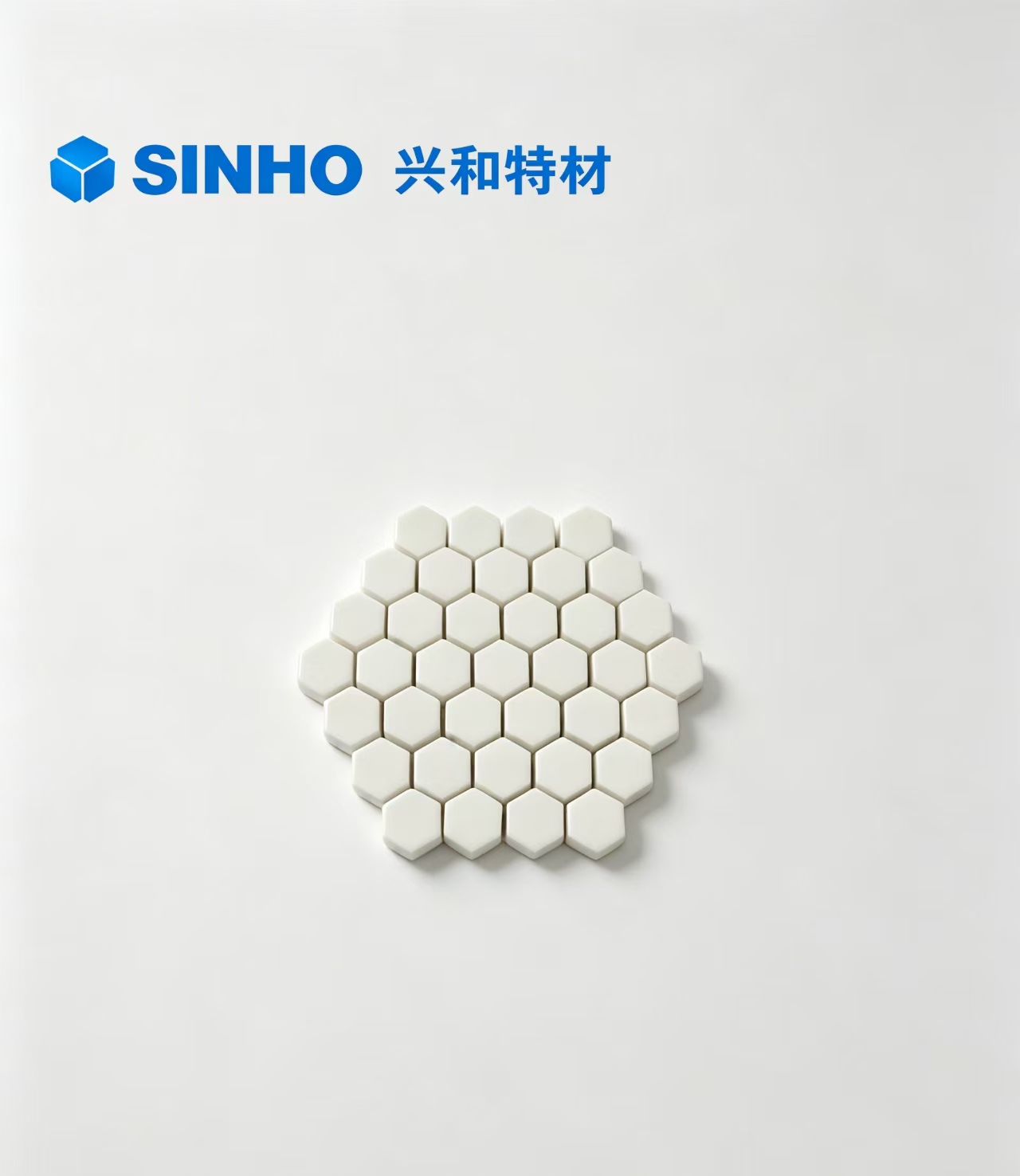

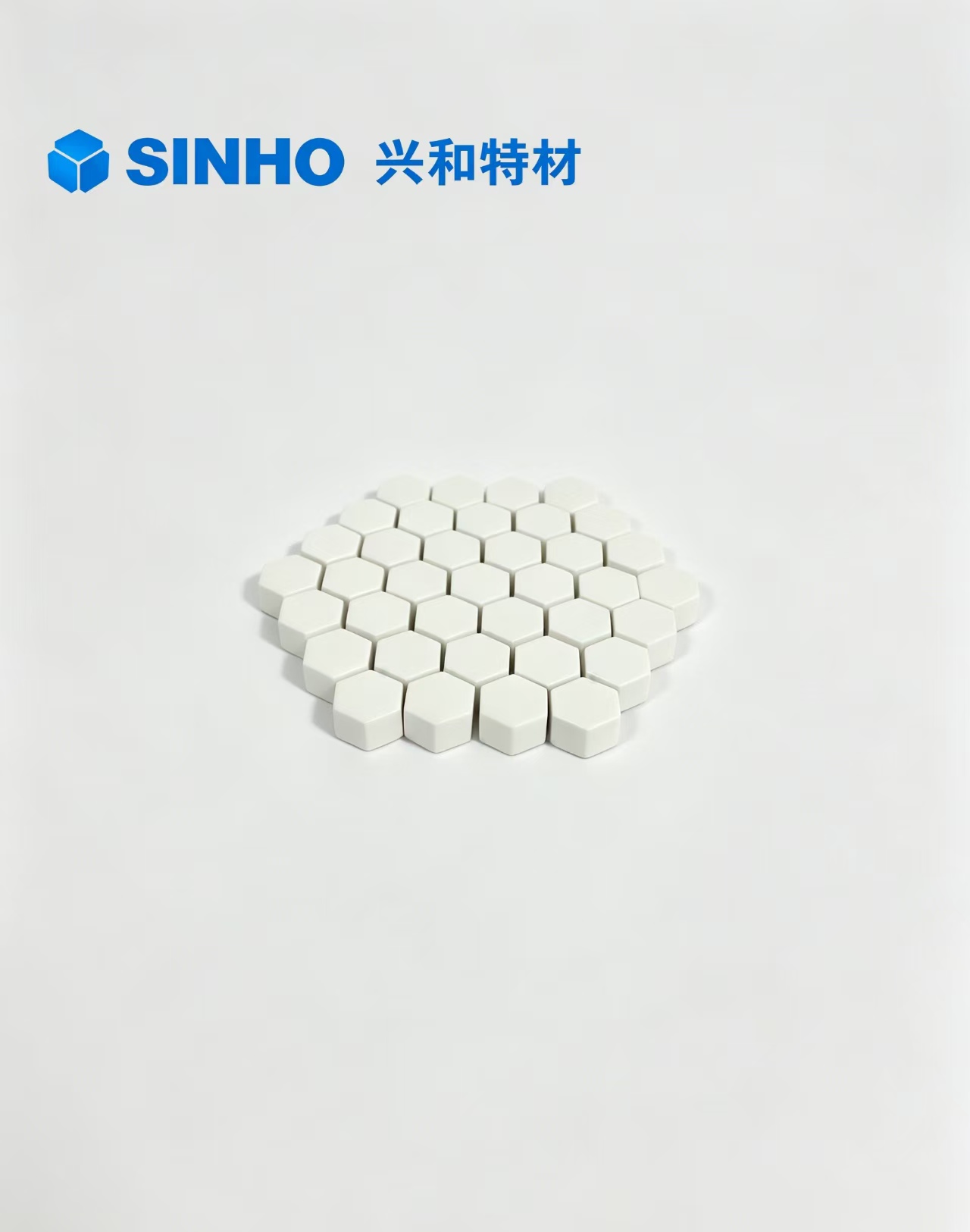

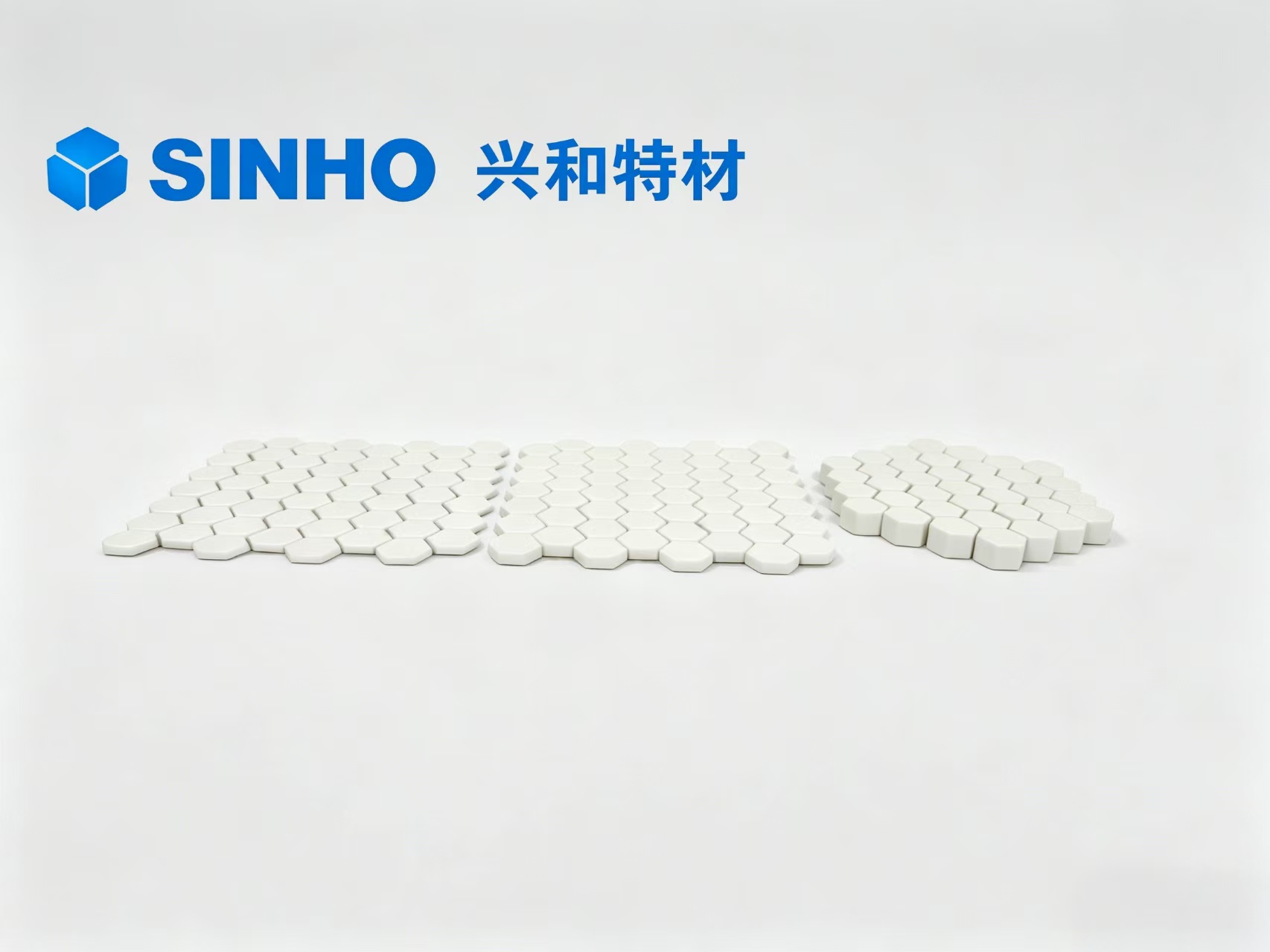

Part Name: Adhesive Backed Alumina Ceramic Tile
Casting Or Forging: Firing and assembly
Owned Machinery: Yes
Настройка: Available
| Продажа единиц жилья | : | Square Meter |
| Пример с картинкой | : |
|
| Скачать | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Product name | Adhesive Backed Alumina Ceramic Tile |
| Material | 92/95 alumina ceramics |
| Usage temperature | below 300℃ |
| Common specifications | Thickness: 2mm, 5mm, 10mm, 15mm |
| Vickers Hardness | up to 1800 HV |
| Applied range | Wear-resistant lining of pulverized coal pipeline, classifier, separator, cyclone and other transportation pipelines |
| Bonding Method | High-temperature Adhesive |
| Application | Cement, Thermal Power, Steel, Mining, Port, Chemical Industry |
| Packing | Carton / Wooden Pallet |
| 92Alumina Lining-Mosaic: | 10*10disc | 10*5disc | 17.5*17.5*10 | 17.5*17.5*12 | 20*15column | 20*18disc | 24*24*15 | 27*27*15 |
| A fraction of the size | 23.5*23.5*16 | 20*20*9 | 20*20*3 | 17.5*17.5*6 | 17.5*17.5*9 | 30.5*30.5*20 | 38*38*6 | 39*39*7 |
| Project | Paste type | Welding type | Dovetail type | shock resistance | Ceramic rubber liner |
| Code name | SHC-Z | SHC-H | SHC-Y | SHC-K | SHC-J |
| Service temperature (℃) | 300 | 300-800 | ≤800 | ≤800 | -50~150 |
| Applicable medium | Powder / slurry | Powder / slurry | Powder / slurry | Particles/slurry | Particles/slurry |
| Material particles (mm) | ≤3 | ≤10 | ≤200 | ≤200 | ≤200 |
| Applied range | Pneumatic conveying of powder or slurry below 300℃ | Pneumatic conveying of larger particle powder or slurry below 800℃ | Pneumatic conveying of large particle powder or high-speed rotating equipment below 800℃ | The bulk material conveying system below 800℃ is especially suitable for the mixture of hard bulk materials and powdery materials. | The bulk material conveying system below 150℃ is especially suitable for conveying pure soft bulk materials and can resist large impact. |
