| Вид оплаты: | T/T,L/C,D/P |
| Инкотермс: | FOB,CFR,CIF,EXW |
| транспорт: | Ocean |
| Порт: | Shanghai Port,Qingdao Port,Ningbo Port |
Оттенок:
Бренд: СИНХО
Origin: Китай
положение дел: Новый
Где предоставлять местные услуги (в каких странах есть зарубежные центры обслуживания): никто
Расположение выставочного зала (в каких странах есть образцы за рубежом): никто
Тип маркетинга: Обычный продукт
место происхождения: Китай
Промышленность приложений: Руда
Применимая отрасль: Энергетика и горнодобывающая промышленность, Строительные работы
Настройка: Available
Производительность: Износостойкость и ударопрочность
Material: 92/95 alumina ceramics
| Продажа единиц жилья | : | Square Meter |
| Пример с картинкой | : |
|
| Скачать | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

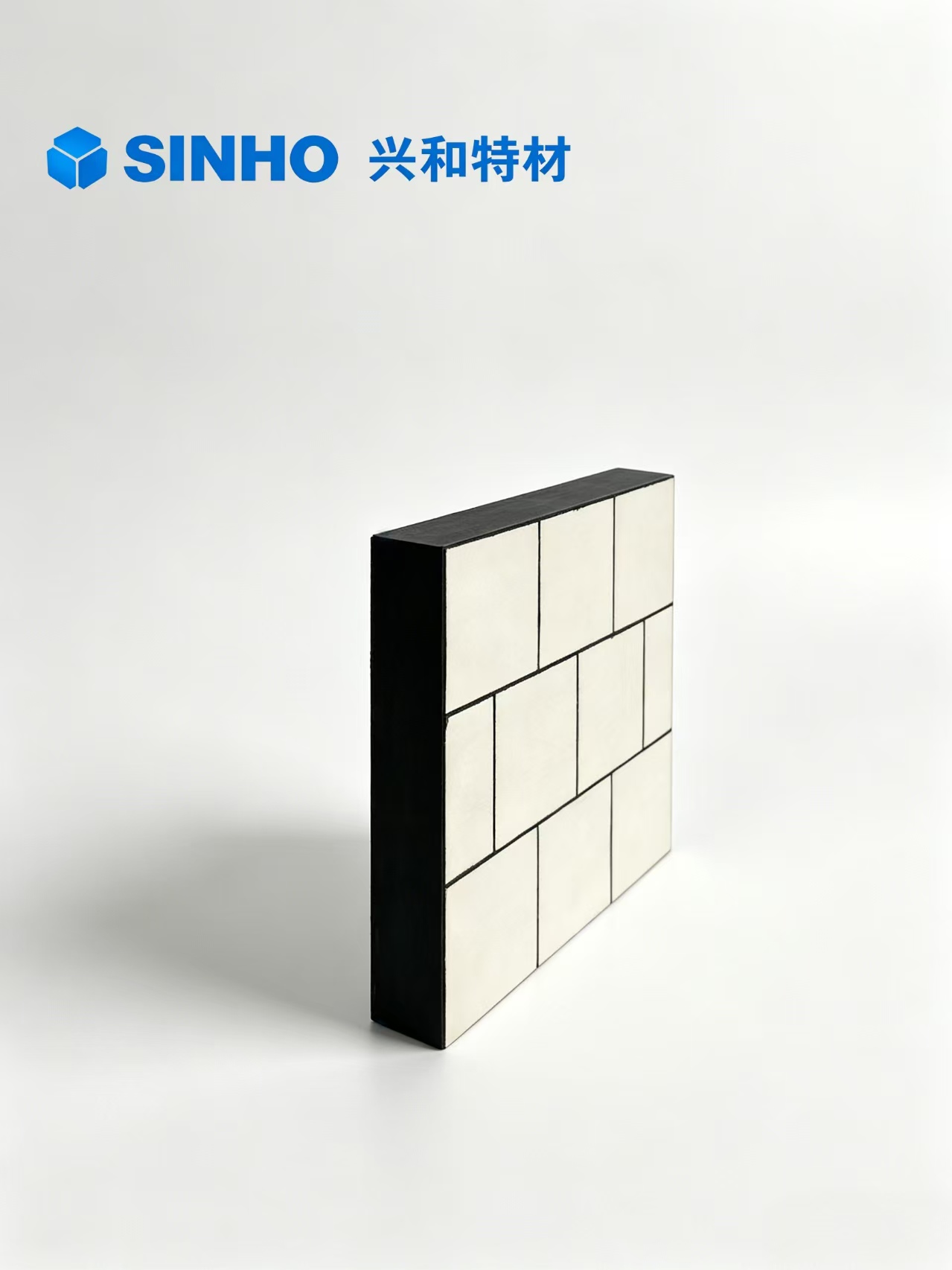

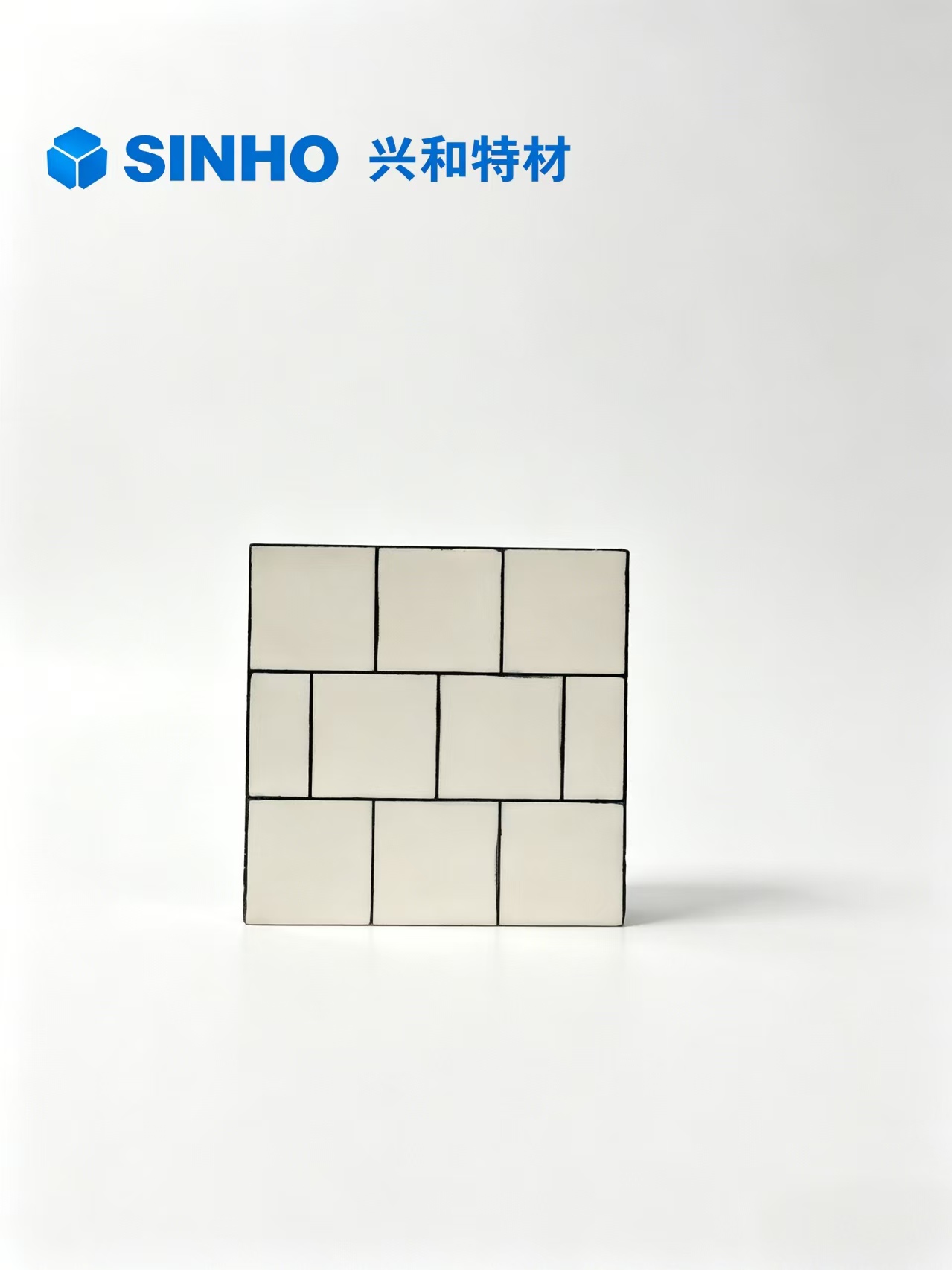

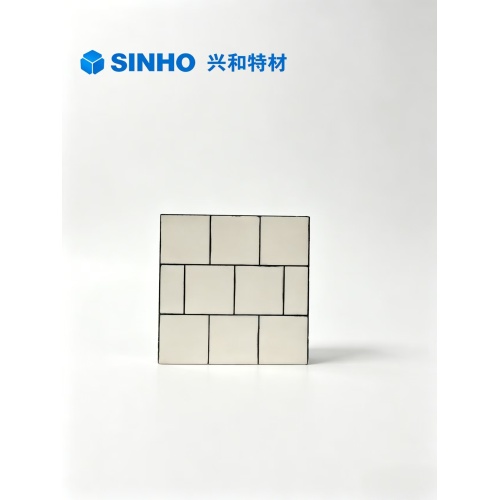

| Part Name | Ceramic Rubber Liners |
| Material |
Two-in-one：Ceramic+rubber
three-in-one：Ceramic+rubber+steel plate
|
| Optional material |
Ceramics: SHC wear-resistant ceramics /SHN nano-ceramics /SHA alloy ceramics.
Viscose: common rubber/heat resistant rubber (150℃)/ cold resistant rubber (-50℃)/ flame retardant rubber.
|
| usage temperature | -50℃—150℃ |
| Common specifications | 16/20/24/30/62mm |
| Origin | China |
| Certificate | ISO9001 |
| HS | 6909120000 |
| Project | Paste type | Welding type | Dovetail type | shock resistance | Ceramic rubber liner |
| Code name | SHC-Z | SHC-H | SHC-Y | SHC-K | SHC-J |
| Service temperature (℃) | 300 | 300-800 | ≤800 | ≤800 | -50~150 |
| Applicable medium | Powder / slurry | Powder / slurry | Powder / slurry | Particles/slurry | Particles/slurry |
| Material particles (mm) | ≤3 | ≤10 | ≤200 | ≤200 | ≤200 |
| Applied range | Pneumatic conveying of powder or slurry below 300℃ | Pneumatic conveying of larger particle powder or slurry below 800℃ | Pneumatic conveying of large particle powder or high-speed rotating equipment below 800℃ | The bulk material conveying system below 800℃ is especially suitable for the mixture of hard bulk materials and powdery materials. | The bulk material conveying system below 150℃ is especially suitable for conveying pure soft bulk materials and can resist large impact. |
