| Вид оплаты: | T/T,D/P,L/C |
| Инкотермс: | FOB,CFR,CIF,EXW |
| транспорт: | Ocean |
| Порт: | Shanghai Port,Qingdao Port,Ningbo Port |
Оттенок:
Бренд: СИНХО
Origin: Китай
положение дел: Новый
Где предоставлять местные услуги (в каких странах есть зарубежные центры обслуживания): никто
Расположение выставочного зала (в каких странах есть образцы за рубежом): никто
Тип маркетинга: Обычный продукт
место происхождения: Китай
Промышленность приложений: Руда
Применимая отрасль: Строительные работы, Энергетика и горнодобывающая промышленность
Material: 92/95 alumina ceramics

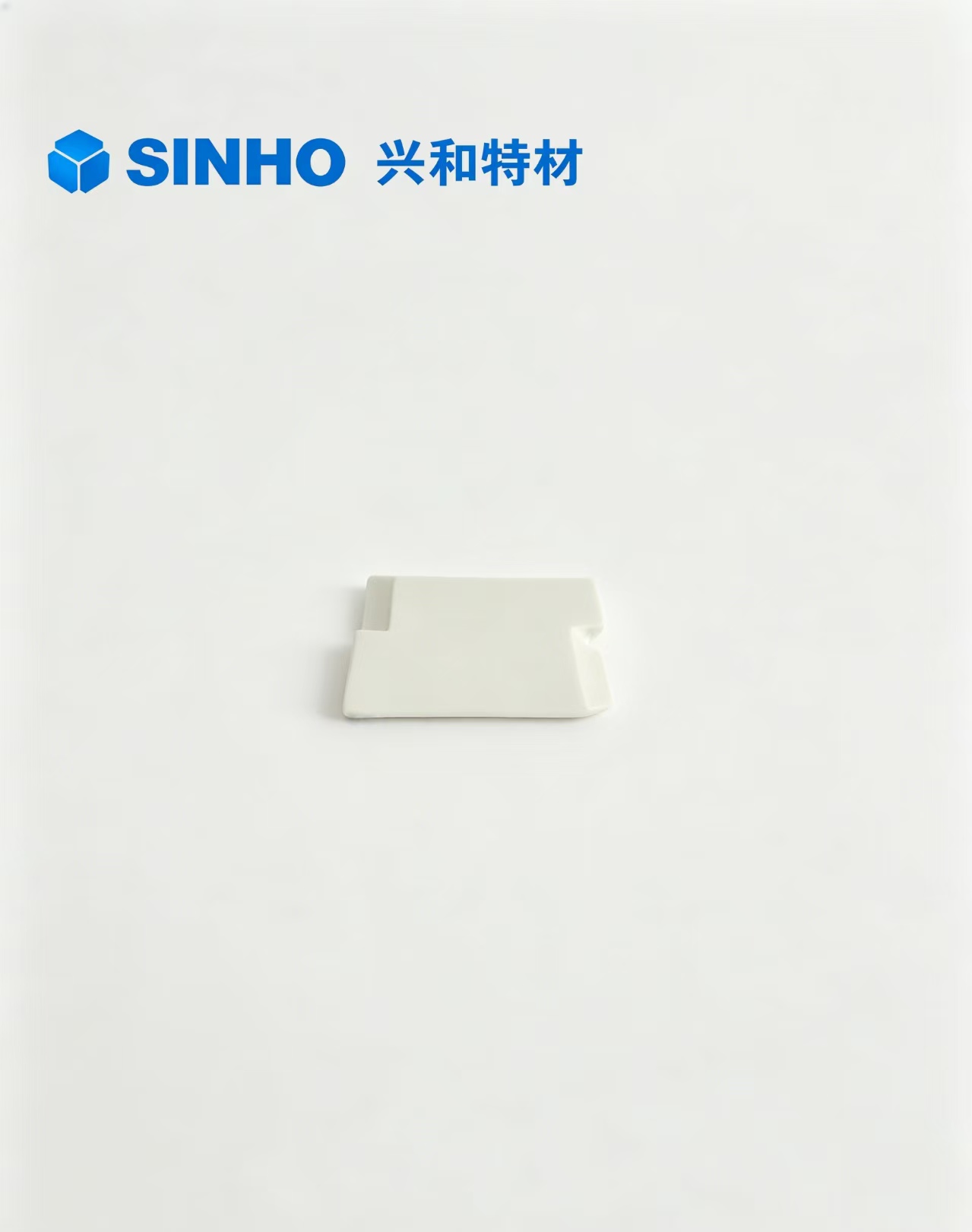

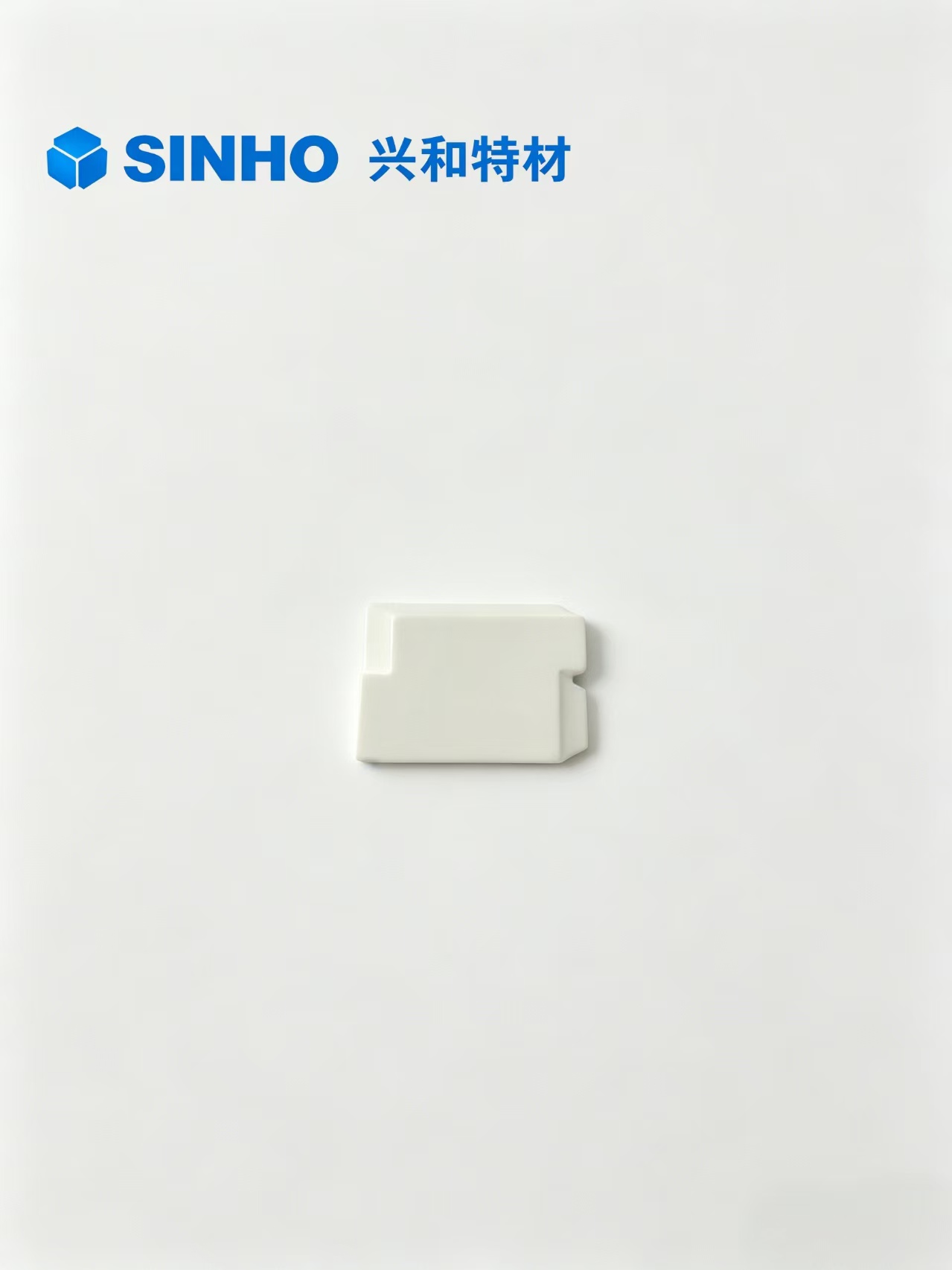

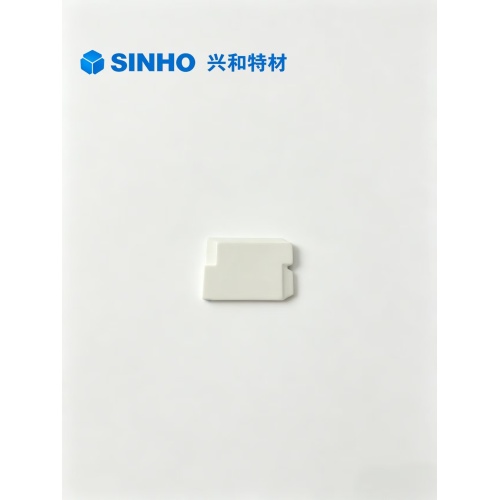

Part Name: Dovetail wear resistant ceramic
Casting Or Forging: high sintering
Настройка: Available
| Продажа единиц жилья | : | Square Meter |
| Пример с картинкой | : |
|
| Скачать | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
|
Product Name
|
Dovetail wear-resistant ceramics |
|
Material
|
92%/95% Alumina Ceramic
|
| wear-resisting property | 20 times that of ordinary steel. |
| Core advantage | Vibration resistance, impact resistance, high temperature resistance and no peeling. |
| Applicable equipment | Fan impeller, burner, air preheater, coke hopper in steel plant, slag, etc. |
| usage temperature | ≤800℃ |
| Common specification thickness | 8/10/20/25/30mm |
| Applicable industries | Power plant, cement, mining, metallurgy, chemical industry, powder industry |
| Project | Paste type | Welding type | Dovetail type | shock resistance | Ceramic rubber liner |
| Code name | SHC-Z | SHC-H | SHC-Y | SHC-K | SHC-J |
| Service temperature (℃) | 300 | 300-800 | ≤800 | ≤800 | -50~150 |
| Applicable medium | Powder / slurry | Powder / slurry | Powder / slurry | Particles/slurry | Particles/slurry |
| Material particles (mm) | ≤3 | ≤10 | ≤200 | ≤200 | ≤200 |
| Applied range | Pneumatic conveying of powder or slurry below 300℃ | Pneumatic conveying of larger particle powder or slurry below 800℃ | Pneumatic conveying of large particle powder or high-speed rotating equipment below 800℃ | The bulk material conveying system below 800℃ is especially suitable for the mixture of hard bulk materials and powdery materials. | The bulk material conveying system below 150℃ is especially suitable for conveying pure soft bulk materials and can resist large impact. |
