| Вид оплаты: | T/T,L/C,D/P |
| Инкотермс: | FOB,CFR,CIF,EXW |
| транспорт: | Ocean |
| Порт: | Shanghai Port,Qingdao Port,Ningbo Port |
Оттенок:
Бренд: СИНХО
Origin: Китай
положение дел: Новый
Где предоставлять местные услуги (в каких странах есть зарубежные центры обслуживания): никто
Расположение выставочного зала (в каких странах есть образцы за рубежом): никто
Тип маркетинга: Обычный продукт
место происхождения: Китай
Промышленность приложений: Руда
Применимая отрасль: Энергетика и горнодобывающая промышленность, Строительные работы
Material: 92/95 alumina ceramics
Наименование: Свариваемая износостойкая керамика
Casting Or Forging: Firing and assembly
Owned Machinery: Yes
Настройка: Available
| Продажа единиц жилья | : | Square Meter |
| Пример с картинкой | : |
|
| Скачать | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

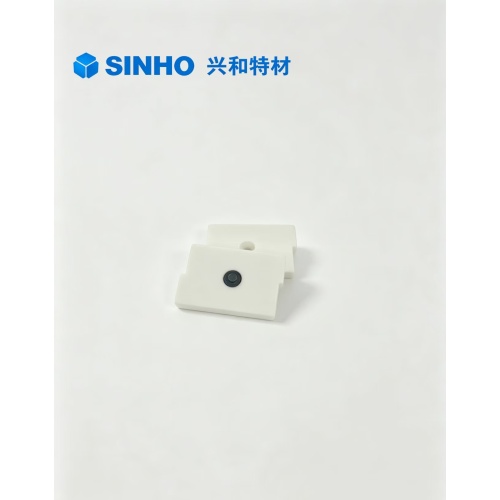

| Product name | Weldable wear-resistant ceramics |
| Material | 92/95 alumina ceramics |
| Usage temperature | 300℃-800℃ |
| Common specifications | Thickness: 5mm, 7mm, 10mm, 15mm |
| Vickers Hardness | up to 1800 HV |
| Applied range | Suitable for wear resistance of high temperature powder conveying or pulverizing system equipment. |
| Mucilage Glue | SHV-800 |
| Application | Cement, Thermal Power, Steel, Mining, Port, Chemical Industry |
| Packing | Carton / Wooden Palletv |
| 92 alumina liner-orifice plate（A fraction of the size） | 100*100*10 | 100*100*16 | 100*100*25 | 100*50*10 | 100*100*6 | 100*50*10 |
| 95 alumina liner-orifice plate（A fraction of the size） | 100*100*25 | 100*50*10 | 120*80*12 | 150*100*14 | 150*100*25 | 100*50*25 |
| Project | Paste type | Welding type | Dovetail type | shock resistance | Ceramic rubber liner |
| Code name | SHC-Z | SHC-H | SHC-Y | SHC-K | SHC-J |
| Service temperature (℃) | 300 | 300-800 | ≤800 | ≤800 | -50~150 |
| Applicable medium | Powder / slurry | Powder / slurry | Powder / slurry | Particles/slurry | Particles/slurry |
| Material particles (mm) | ≤3 | ≤10 | ≤200 | ≤200 | ≤200 |
| Applied range | Pneumatic conveying of powder or slurry below 300℃ | Pneumatic conveying of larger particle powder or slurry below 800℃ | Pneumatic conveying of large particle powder or high-speed rotating equipment below 800℃ | The bulk material conveying system below 800℃ is especially suitable for the mixture of hard bulk materials and powdery materials. | The bulk material conveying system below 150℃ is especially suitable for conveying pure soft bulk materials and can resist large impact. |
