| Вид оплаты: | L/C,T/T,D/P |
| Инкотермс: | FOB,CFR,CIF,EXW |
| транспорт: | Ocean |
| Порт: | Shanghai Port,Qiingdao Port,Ningbo Port |
Оттенок:
Бренд: СИНХО
Origin: Китай
положение дел: Новый
Применимая отрасль: Энергетика и горнодобывающая промышленность, Строительные работы
Где предоставлять местные услуги (в каких странах есть зарубежные центры обслуживания): никто
Расположение выставочного зала (в каких странах есть образцы за рубежом): никто
Тип маркетинга: Обычный продукт
место происхождения: Китай
Промышленность приложений: Руда
Настройка: Available
заявка: Wear-resistant Lining, Loader, Construction Machinery, Metallurgical Machinery, Cement Plant, Mining Machine, Thermal Power Plant, Coal Yard
Material: 92/95 alumina ceramics
| Продажа единиц жилья | : | Square Meter |
| Тип упаковки | : | Коробка/деревянный поддон |
| Пример с картинкой | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

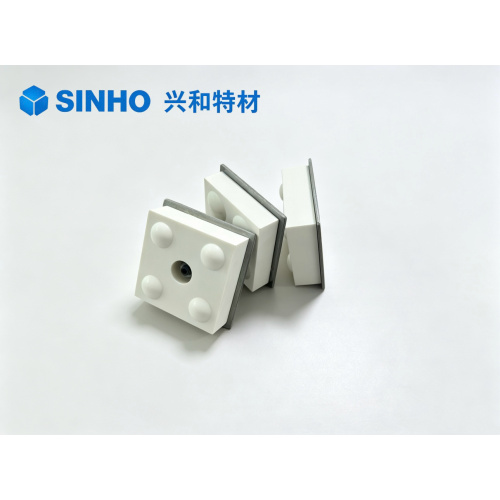

| Product name | Impact-resistant and wear-resistant ceramics |
| Material | 92/95 alumina ceramics |
| Usage temperature | ≤800℃ |
| Common specifications | Thickness: 20mm, 25mm, 30mm, 50mm，70mm |
| Vickers Hardness | up to 1800 HV |
| Applied range | It is suitable for wear resistance of material conveying chutes, hoppers and other equipment in thermal power, steel, cement, coal, ports, mines and chemical industries. |
| Packing | Carton / Wooden Pallet |
| Do not change (status quo) | Change impact-resistant and wear-resistant ceramics |
| The steel plate was worn out in 3 months and frequently stopped. | Life is calculated by years, with less downtime. |
| Ordinary ceramics break and fall off when they are smashed. | Toughening formula, impact-resistant porcelain |
| Each replacement is labor-intensive and time-consuming. | The composite structure is anti-dropping, and the pipes are installed once for many years. |
| The total cost is higher and higher. | One-time investment, long-term return. |
| Project | Paste type | Welding type | Dovetail type | shock resistance | Ceramic rubber liner |
| Code name | SHC-Z | SHC-H | SHC-Y | SHC-K | SHC-J |
| Service temperature (℃) | 300 | 300-800 | ≤800 | ≤800 | -50~150 |
| Applicable medium | Powder / slurry | Powder / slurry | Powder / slurry | Particles/slurry | Particles/slurry |
| Material particles (mm) | ≤3 | ≤10 | ≤200 | ≤200 | ≤200 |
| Applied range | Pneumatic conveying of powder or slurry below 300℃ | Pneumatic conveying of larger particle powder or slurry below 800℃ | Pneumatic conveying of large particle powder or high-speed rotating equipment below 800℃ | The bulk material conveying system below 800℃ is especially suitable for the mixture of hard bulk materials and powdery materials. | The bulk material conveying system below 150℃ is especially suitable for conveying pure soft bulk materials and can resist large impact. |
