| Вид оплаты: | L/C,T/T,D/P |
| Инкотермс: | FOB,CFR,CIF,EXW |
| транспорт: | Ocean |
| Порт: | Shanghai Port,Qingdao Port,Ningbo Port |
Оттенок:
Бренд: СИНХО
Origin: Китай
положение дел: Новый
Где предоставлять местные услуги (в каких странах есть зарубежные центры обслуживания): никто
Расположение выставочного зала (в каких странах есть образцы за рубежом): никто
Тип маркетинга: Обычный продукт
место происхождения: Китай
Промышленность приложений: Руда
Применимая отрасль: Строительные работы, Энергетика и горнодобывающая промышленность
Material: 92/95 alumina ceramics
Настройка: Available
заявка: Industrial Ceramic
| Продажа единиц жилья | : | Piece/Pieces |
| Пример с картинкой | : |
|
| Скачать | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

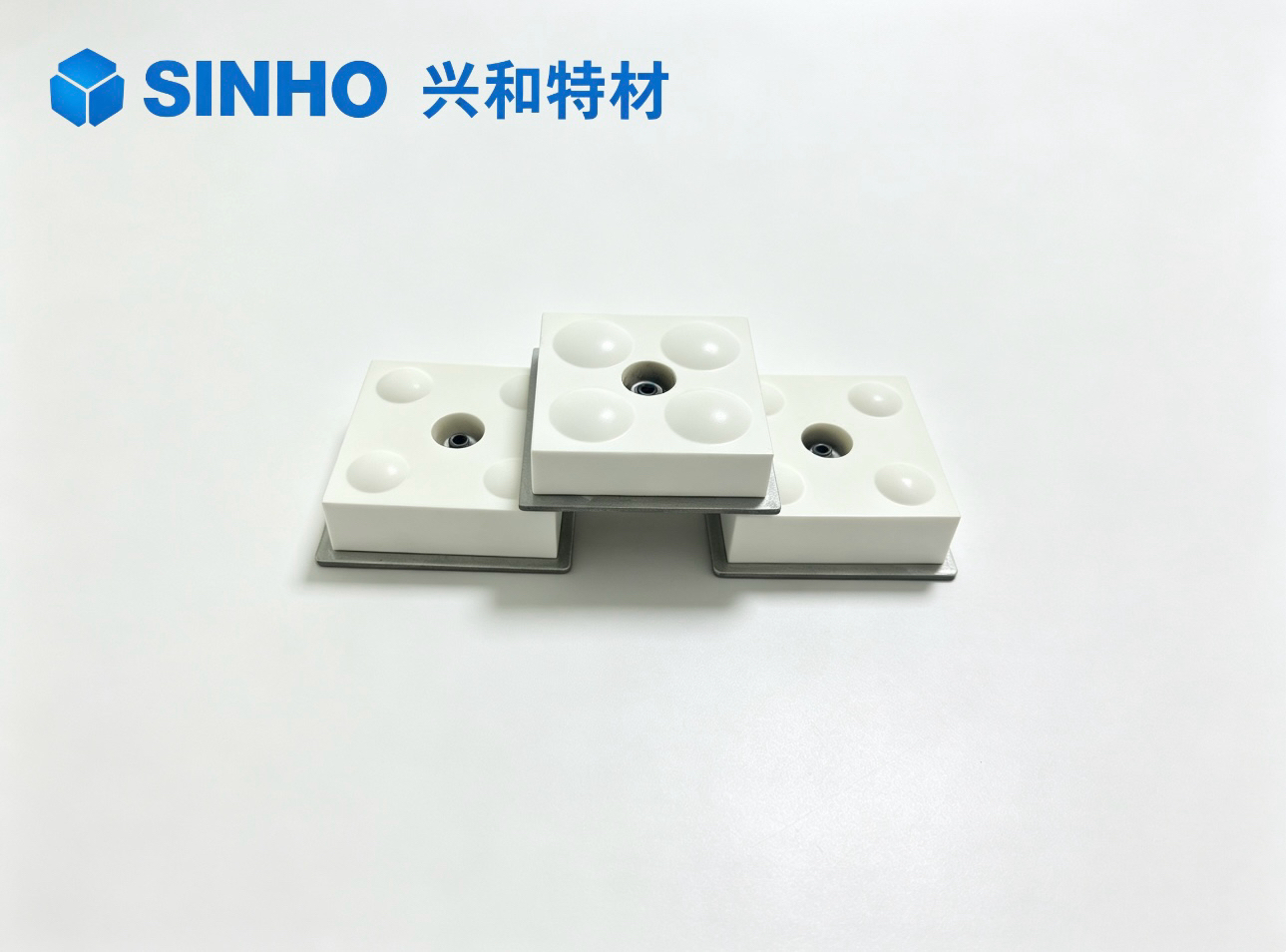

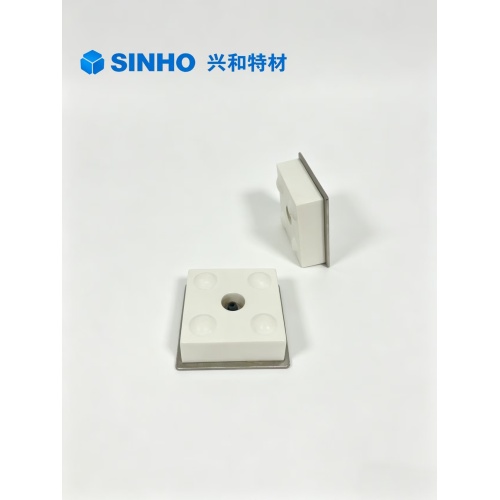

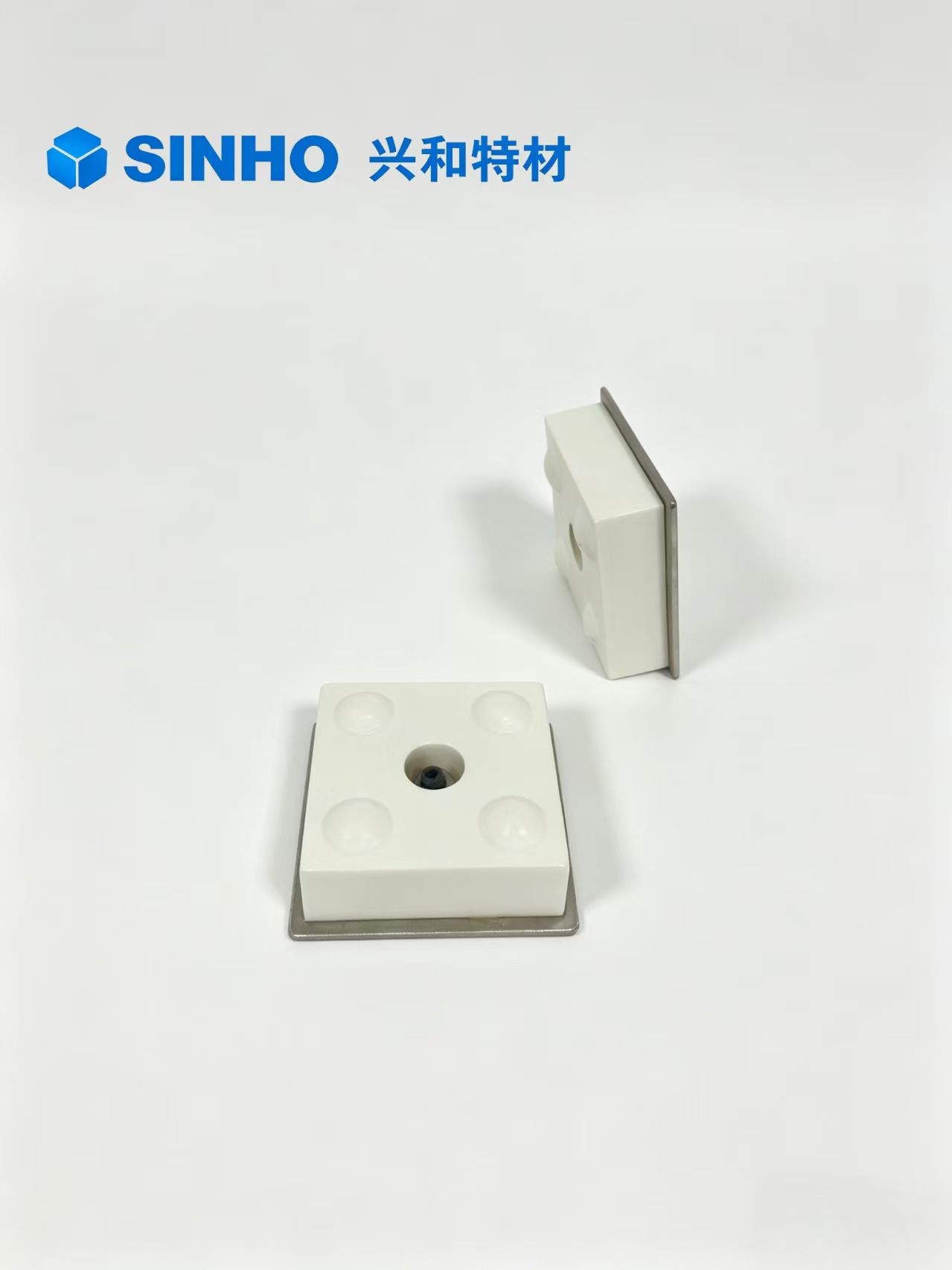

| Product name | Impact-resistant and wear-resistant ceramics |
| Material | 92/95 alumina ceramics |
| Usage temperature | ≤800℃ |
| Common specifications | Thickness: 20mm, 25mm, 30mm, 50mm，70mm |
| Vickers Hardness | up to 1800 HV |

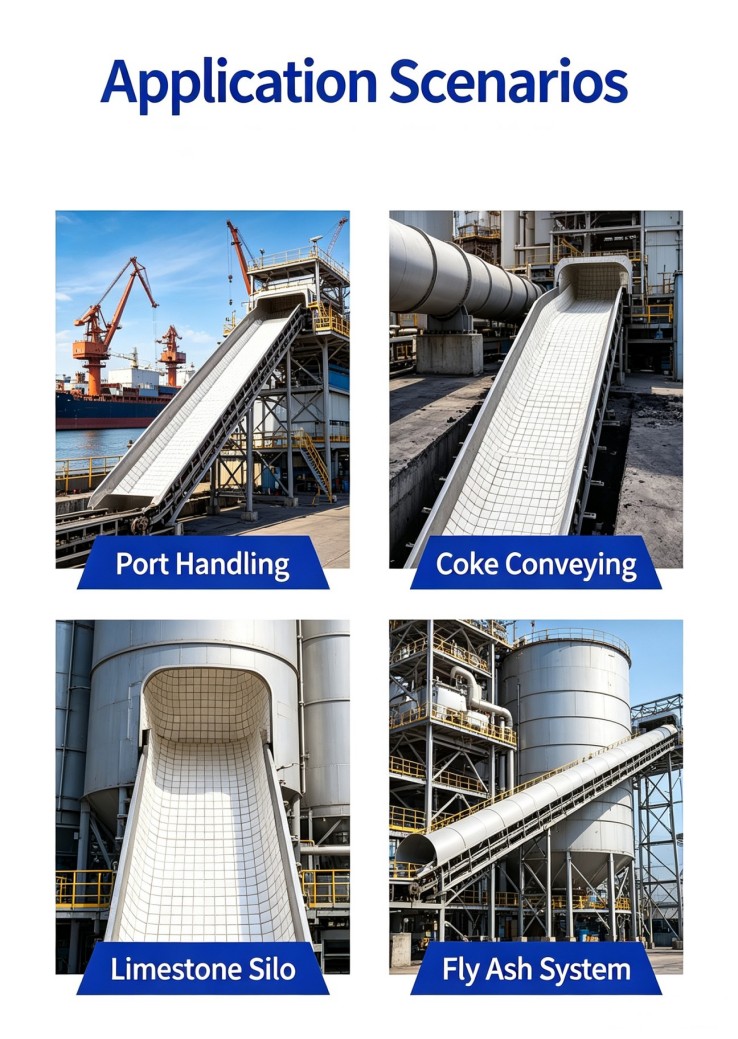

| Applied range | It is suitable for wear resistance of material conveying chutes, hoppers and other equipment in thermal power, steel, cement, coal, ports, mines and chemical industries. |
| Packing | Carton / Wooden Pallet |
| Do not change (status quo) | Change impact-resistant and wear-resistant ceramics |
| The steel plate was worn out in 3 months and frequently stopped. | Life is calculated by years, with less downtime. |
| Ordinary ceramics break and fall off when they are smashed. | Toughening formula, impact-resistant porcelain |
| Each replacement is labor-intensive and time-consuming. | The composite structure is anti-dropping, and the pipes are installed once for many years. |
| The total cost is higher and higher. | One-time investment, long-term return. |
| Project | Paste type | Welding type | Dovetail type | shock resistance | Ceramic rubber liner |
| Code name | SHC-Z | SHC-H | SHC-Y | SHC-K | SHC-J |
| Service temperature (℃) | 300 | 300-800 | ≤800 | ≤800 | -50~150 |
| Applicable medium | Powder / slurry | Powder / slurry | Powder / slurry | Particles/slurry | Particles/slurry |
| Material particles (mm) | ≤3 | ≤10 | ≤200 | ≤200 | ≤200 |
| Applied range | Pneumatic conveying of powder or slurry below 300℃ | Pneumatic conveying of larger particle powder or slurry below 800℃ | Pneumatic conveying of large particle powder or high-speed rotating equipment below 800℃ | The bulk material conveying system below 800℃ is especially suitable for the mixture of hard bulk materials and powdery materials. | The bulk material conveying system below 150℃ is especially suitable for conveying pure soft bulk materials and can resist large impact. |
| Q: Will the bumps of the bump ceramic liner be polished off soon? | A：The liner body is made of high toughness 95 toughened alumina ceramics, with high overall hardness; The bumps are integrally sintered with ceramics, not later pasted. Bumps take priority to bear the impact of materials and disperse the impact force. Even if the bumps are worn, the matrix ceramics still have complete wear protection, which can significantly prolong the service life of the blanking impact zone compared with ordinary planar ceramics |
| Q: How is this liner fixed on the equipment? Is it complicated to install? | A: Double fixation is adopted: bottom plate welding+central bolt locking. The stainless steel base plate is pre-compounded on the back of the ceramic. The base plate is welded to the steel plate matrix of the equipment at the site, and then the ceramic piece is locked with countersunk head bolts. No need to rely on ceramic glue, not limited by high temperature aging; Modular single liner can be installed by one person, with high construction efficiency |
| Q: Can I customize the size and bump style? What is the minimum order quantity? | A: Non-standard customization is supported, and the length, width, thickness, bump height and number of bumps can be adjusted. The quotation can be evaluated according to your drawings and working conditions |
